Our Products

SURFACE TABLE WITH ‘0’ GRADE , VERNIER HEIGHT GAUGE , MICROMETER , DIGITAL AND DIAL VERNIERS ,BALL VERNIER MASTER , RINGROOVE MASTER WITH API SPECIFICATION , SLIP GAUGES

Ball Verniers

Image 09

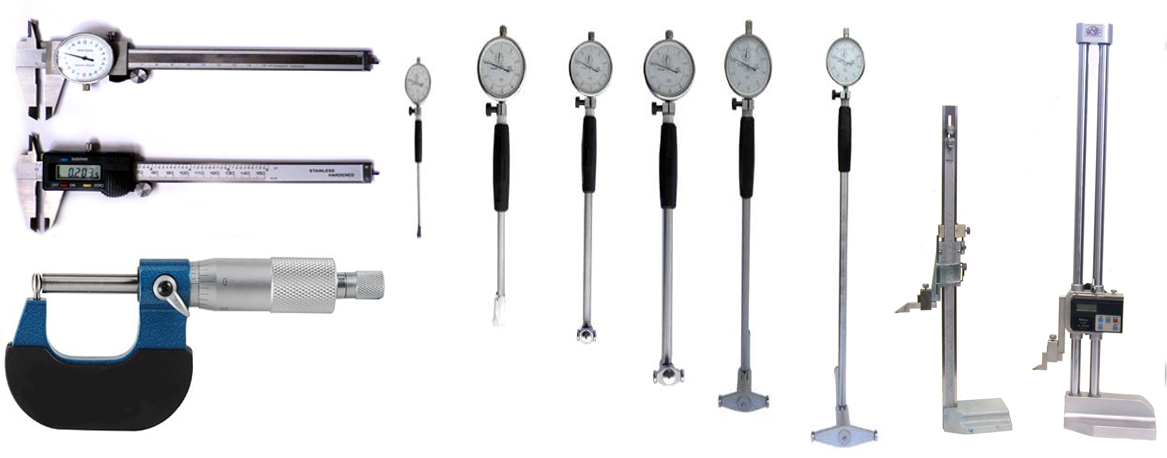

Instead of using a vernier mechanism, which requires some practice to use, the Ball vernier reads the final fraction of a millimeter or inch on a simple dial. These verniers are used for "differential" measurements.

More

Instruments

Image 06

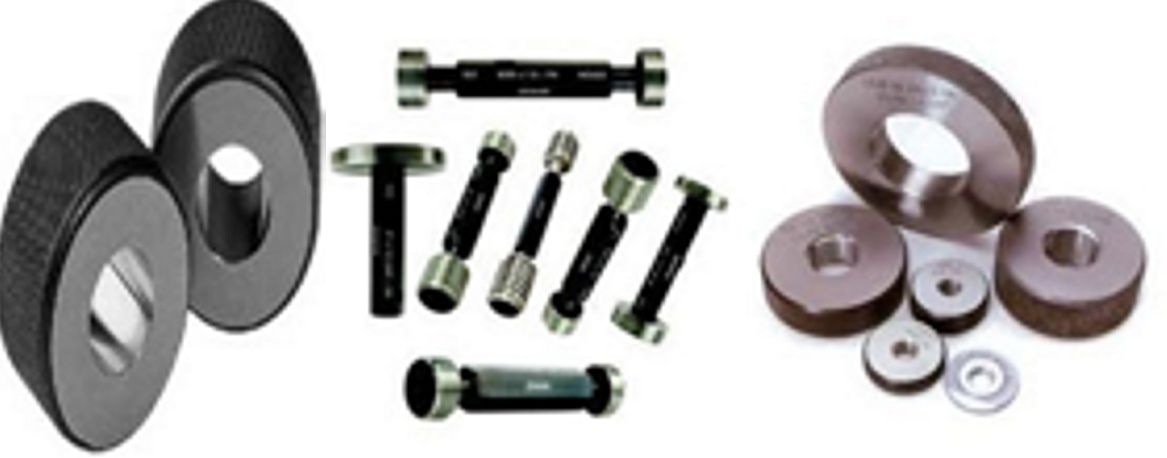

A vernier scale is a device that lets the user measure more precisely than could be done by reading a uniformly-divided straight or circular measurement scale. It is scale that indicates where the measurement lies in between two of the marks on the main scale. A ring gauge is a cylindrical ring of a thermally stable material, often steel, whose inside diameter is finished to gauge tolerance and is used for checking the external diameter of a cylindrical object.Ring gauges are used for comparative gauging as well as for checking, calibrating, or setting of gauges or other standards. Individual ring gauges or ring gauge sets are made to variety of tolerance grades in metric and English dimensions for master, setting, or working applications.

More

Gauges

Image 07



In engineering, a gauge or gage is a device used to make measurements or in order to display certain information, liketime . A wide variety of tools exist which serve such functions, ranging from simple pieces of material against which sizes can be measured to complex pieces of machinery.

More

Jigs & Fixtures

Image 06

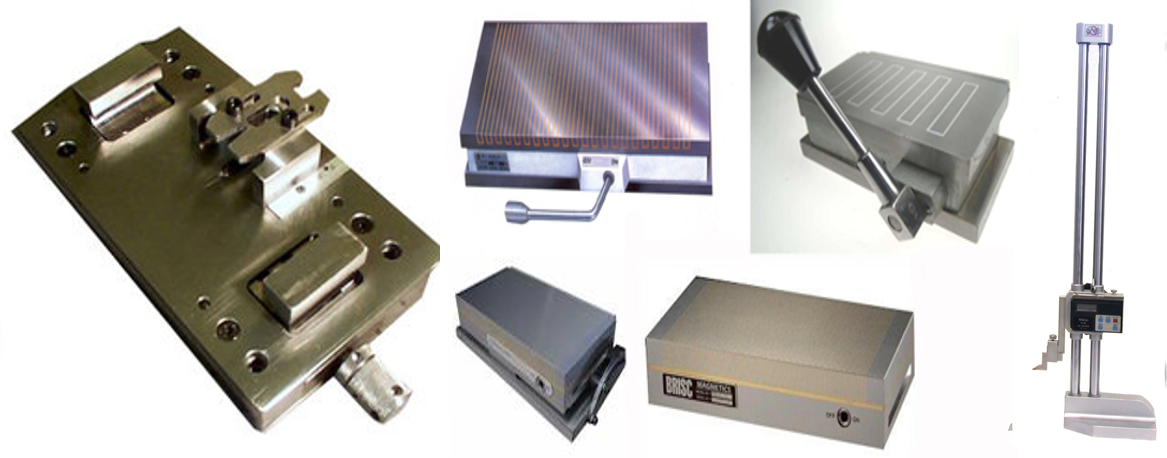

Jigs and fixtures are special purpose tool which are used to facilitate production (machining, asslembling and inspection operations), when work piece is based on the concept of interchangeability according to which every part will be produced within an established tolerance. Jigs and fixtures provide on means of manufacturing interchangeable parts since they establish a relation with predetermined to tolerance between the work and cutting tool. They eliminate the necessity of a special set up for each individual park. So’ A jig is may be de-fined as a device which hold and position the work; locate or guides the outing tool relative to the work piece and usually not fixed to the m/c table. It is usually lightly in construction.

More
